LTP02-245 EVK

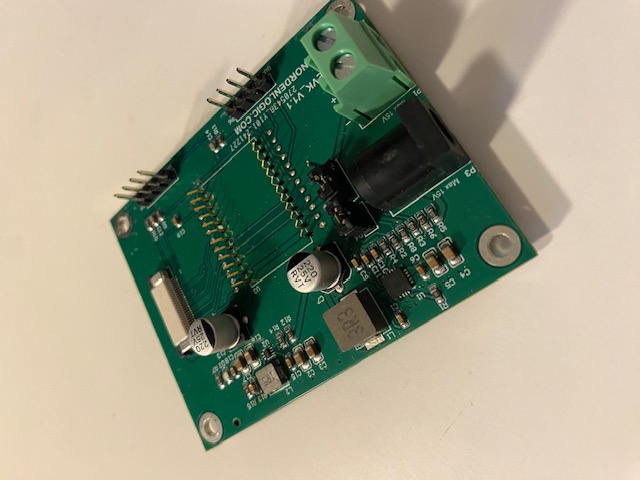

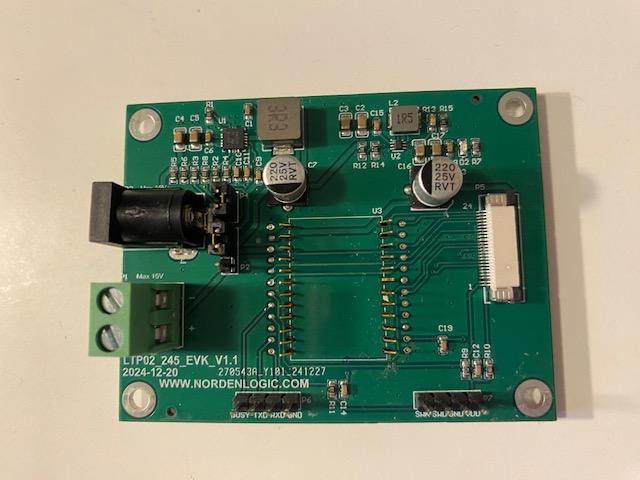

NL022 evaluation board for Seiko LTP02-245 or compatible print heads

Our EVK board is designed so as to test both the LTP02-245-13 (7.2V) print head and the LTP02-245-C1 4.2V head. The type of head connected can be set in flash in the controller via ESC/POS command or using our Printerevk Test software.



Parts required to use the EVK board:

• Power supply between 7.2V and 12V supporting a minimum of 6Amp of current
• Serial Dongle PC: USB-to-TTL e.g. based on FTDI232 OR CP2102 *NOT RS232
• Seiko LTP02-245-C1 (4.2V) Low Voltage 58mm print head
• Seiko LTP02-245-13 (7.2V) 58mm print head
• Seiko recommended high quality 58mm thermal paper roll



Alternative print heads:

• LTP02-245-A
• M23-DH-H69
• JX-2R-17
• TP2V MTP02
• QJ02-245-13W
• YAEN208
• Low voltage (many of the above print heads also operate at low voltage):
• M23-SX



PDF Brochure
